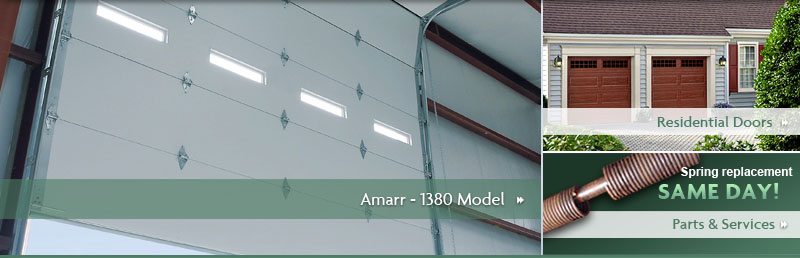

1380 Model

Amarr's Model 1380 features two steel skins surrounding 1 3/8" inches of CFC-free polystyrene.

Each skin is made of 27-gauge steel to provide a solid wall of protection from the elements. Our 4-step insulation system features insulation, weather-stripping, thermal break, and tongue and groove construction for a snug fit between sections.

The exterior face is stucco embossed and ribbed with shallow grooves. The interior surface is stucco embossed. Model 1380 is available prepainted in Commercial White.

Features/Options

CONSTRUCTION
TRIPLE-LAYER Steel + Insulation + Steel

Track: All Amarr Doors are available with both 2" or 3" track in Standard Lift, High Lift, Vertical Lift, Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available. For drawings and more information, please visit the Amarr downloads website.

Hardware: Amarr hardware includes minimum 14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have minimum 10-ball bearings.

Springs: Torsion springs are oil tempered, helical wound and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available up to 100,000 cycle life.

Panel Designs

Ribbed Panel

Window Options
24" X 12" SSB or INSULATED	24" X 4" PLEXIGLASS

Color Options
COMMERCIAL WHITE
